ZX Series Compound Cone Crusher Features and Advantages
Fine cone crusher discharge opening with hydraulic adjustment system
Heavy duty cone crusher bearing housing and eccentric assembly close-up

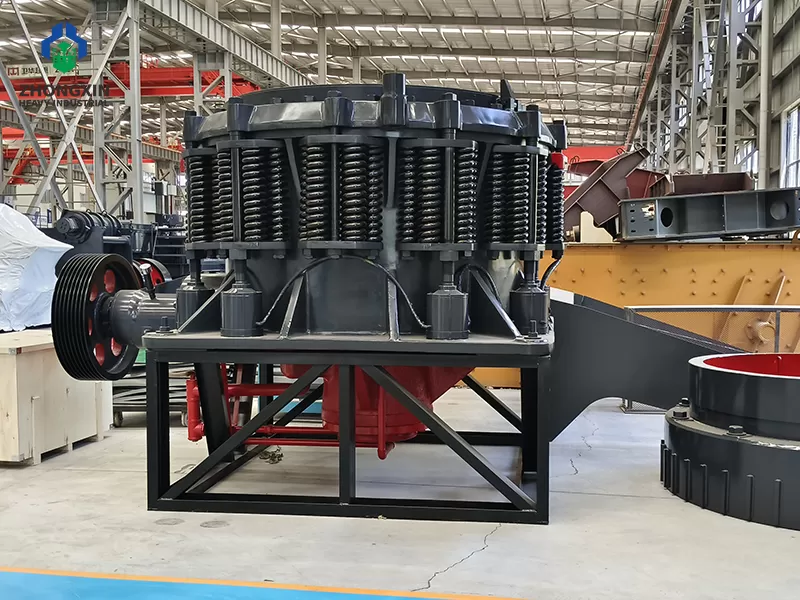

Stone cone crusher main shaft and socket liner installation detail

1. Robust Cast Steel Structure
The crusher body is made of cast steel with reinforcing ribs at high-stress points, ensuring exceptional durability under heavy-load conditions. Inner and outer copper eccentric bushings, together with a steel ball seat and copper ball seat cover, provide reliable operation. A spring-floated dust ring offers automatic regulation during operation, extending component service life.

2. Hydraulic Adjustment & Cavity Cleaning
The hydraulic adjustment mechanism allows quick and precise discharge opening setting. The hydraulic cavity-clearing system, featuring four cylinders on the bottom plate with a recommended clearing distance of 75mm, clears blockages rapidly. This significantly reduces downtime and improves overall operational efficiency.

3. Spring-Type Iron Release Protection
When hard foreign objects such as tramp iron enter the crushing chamber, the spring-type release mechanism allows the upper frame to float up, letting uncrushable materials pass through without damaging the machine. After the object is discharged, the upper frame automatically returns to its normal position, allowing crushing to resume immediately.

4. Efficient External Lubrication System
The high-efficiency external lubrication system includes an oil pump, oil tank, and pipeline. The crusher shuts down automatically if oil temperature becomes too high or oil flow is too slow, preventing damage from inadequate lubrication. A heat exchanger is provided for heating or cooling the oil when necessary, ensuring optimal performance under various conditions.

Advantages of Jiaozuo Zhongxin Heavy Industry's ZX Series Compound Cone Crusher and reasons to choose us

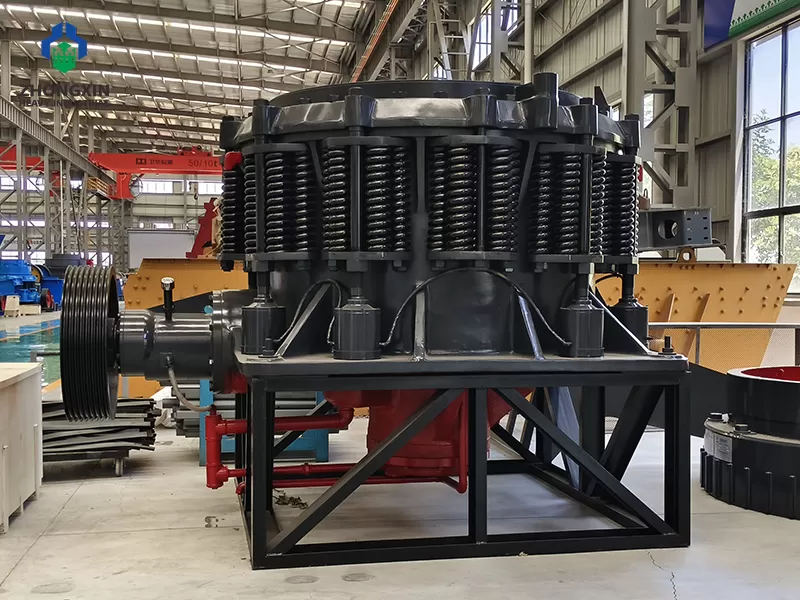

Cone crusher machine moving cone and mantle assembly at workshop

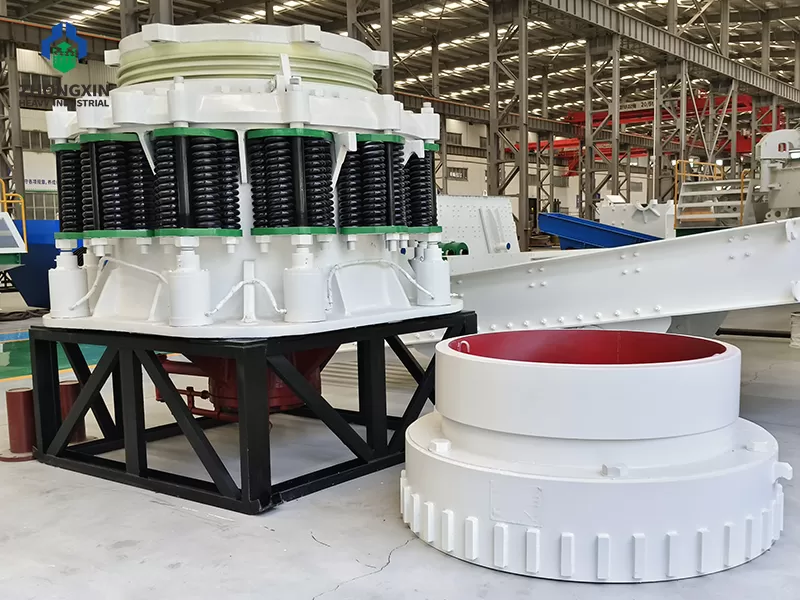

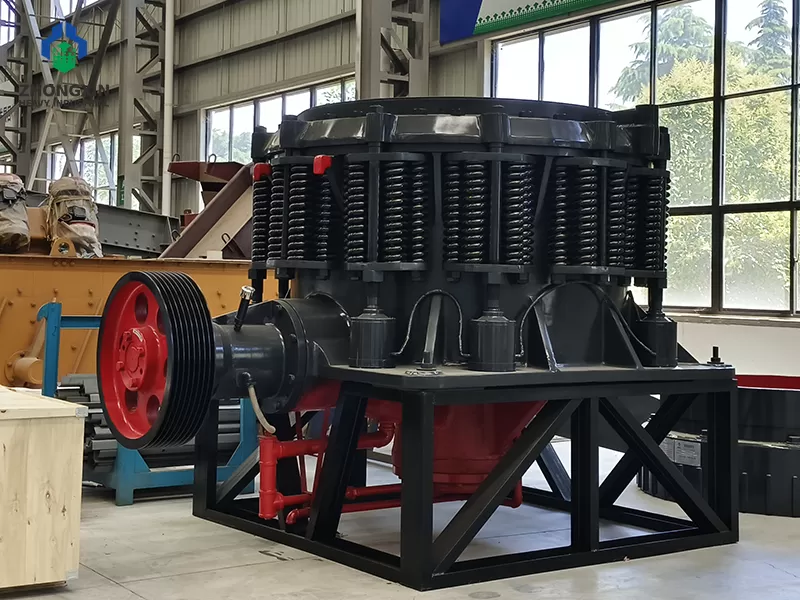

River stone crusher concave and bowl liner installation on production line

What is the working principle of the ZX Series Compound Cone Crusher?

The ZX Series Compound Cone Crusher is mainly used for secondary and subsequent crushing stages. At the center of the main shaft in the crusher body is a cone core and a movable tooth plate, with the spherical surface of the cone core placed on the eccentric seat. Since the center hole of the eccentric seat is not concentric with the body hole, the rotation of the eccentric seat drives the main shaft to rotate.


Under the upper chamber is a fixed tooth plate, which together with the movable tooth plate forms the crushing chamber. The feeding platform ensures material falls evenly onto the distribution plate center. The rotary motion guarantees uniform material flow into the crushing chamber, where the material is crushed by compression, bending, and shearing forces between the two tooth plates. The crushed material is then continuously discharged from the bottom.


The upper frame, which connects the upper chamber and fixed tooth plate, is mounted on the body through peripheral release springs. If hard foreign objects such as iron blocks are mixed with the material, the release springs allow the upper frame to float up, letting the uncrushable material pass through and preventing overload or damage. After the foreign object is discharged, the upper frame automatically returns to its original position, and normal crushing continues. This cycle repeats continuously, enabling efficient and reliable crushing operation.

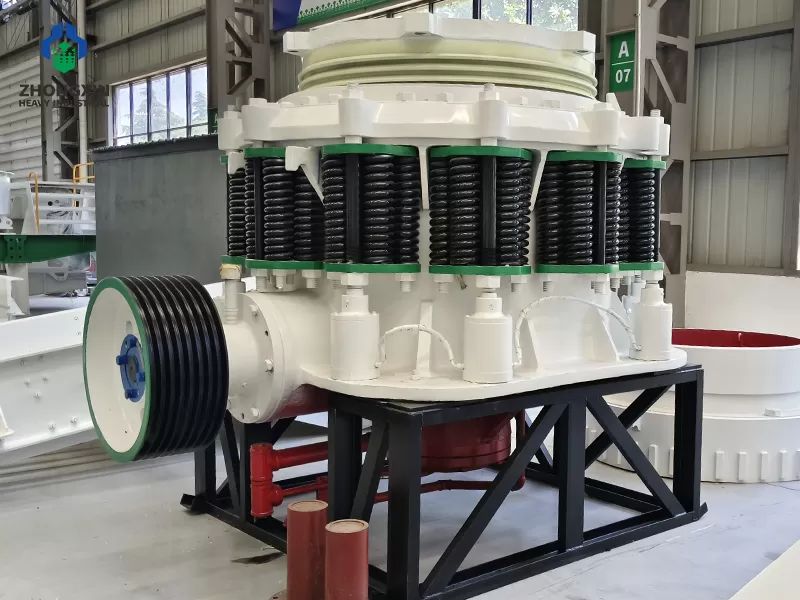

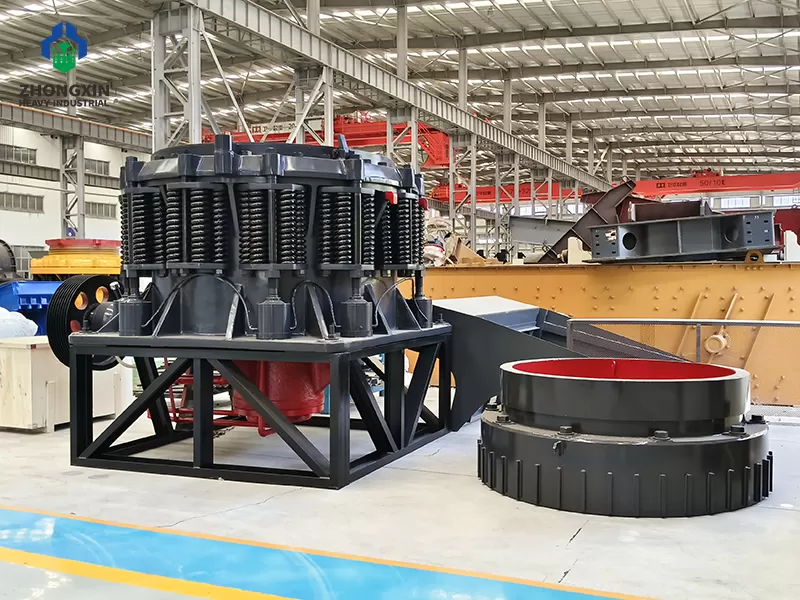

Cone rock crusher complete unit with motor base and drive system

*La capacidad de producción variará en función de los distintos materiales, tamaño de alimentación y otros factores.

ModelCavity TypeMax.Feeding Size(mm)Discharging Opening Adjusted Scope(mm)Capacity(t/h)Motor Power(kw)Weight(t)
ZX1950C-DCoarse35060-110330-72531545
ZX1950Z-DMedium Coarse18019-40230-33031545
ZX1650C₂-DCoarse30035-65280-61025035
ZX1650C-DCoarse26030-60265-58025035
ZX1650Z-DMedium Coarse24025-60240-55025035
ZX1400C-DCoarse23530-60210-53022025
ZX1400Z-DMedium Coarse21525-50200-50022025
ZX1400Z-XMedium Coarse18022-45180-47522025
ZX1200C-DCoarse18019-50110-25013216
ZX1300C-DCoarse20016-51135-35016021.5
ZX1300Z-DMedium Coarse15013-25105-18016021.5
